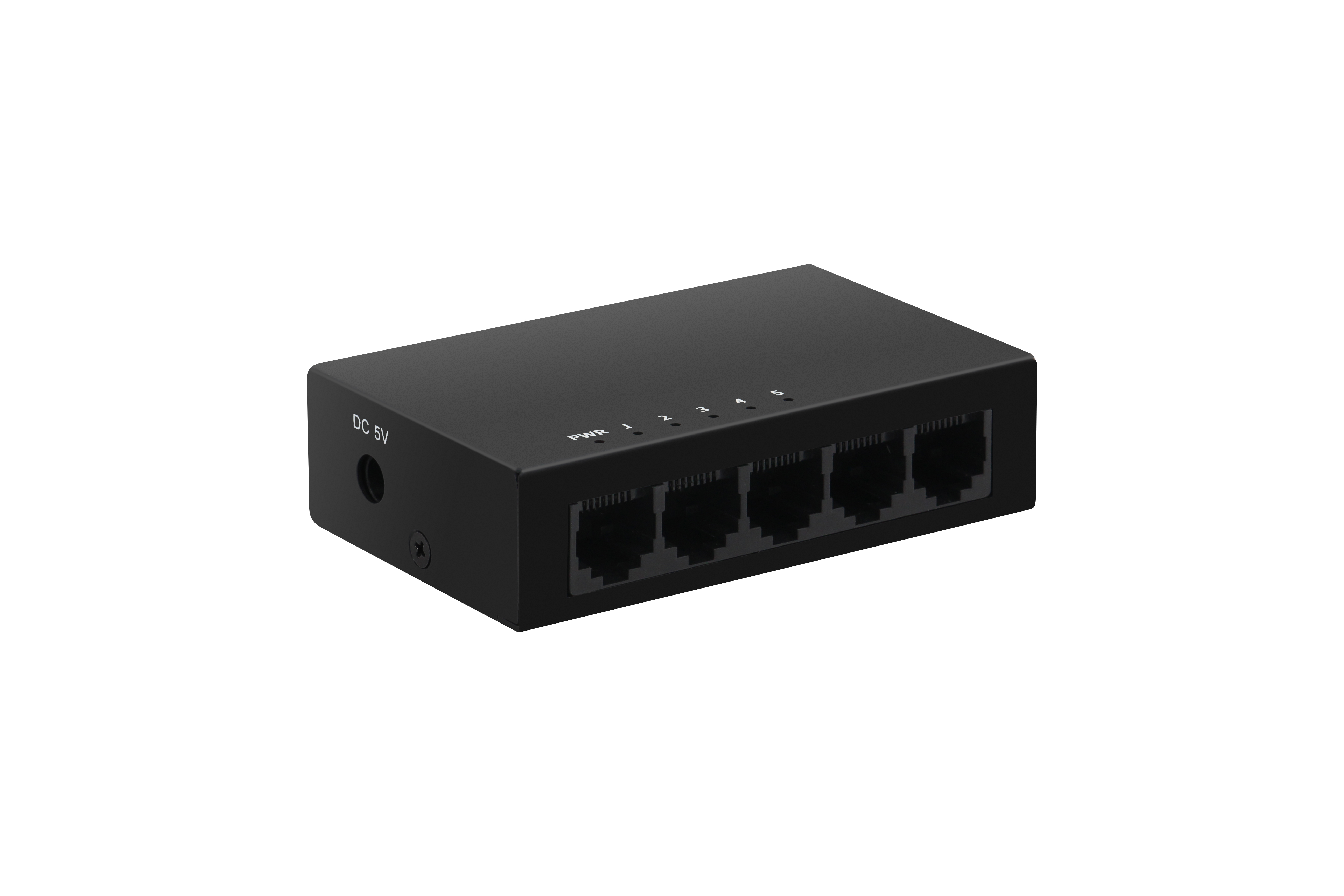

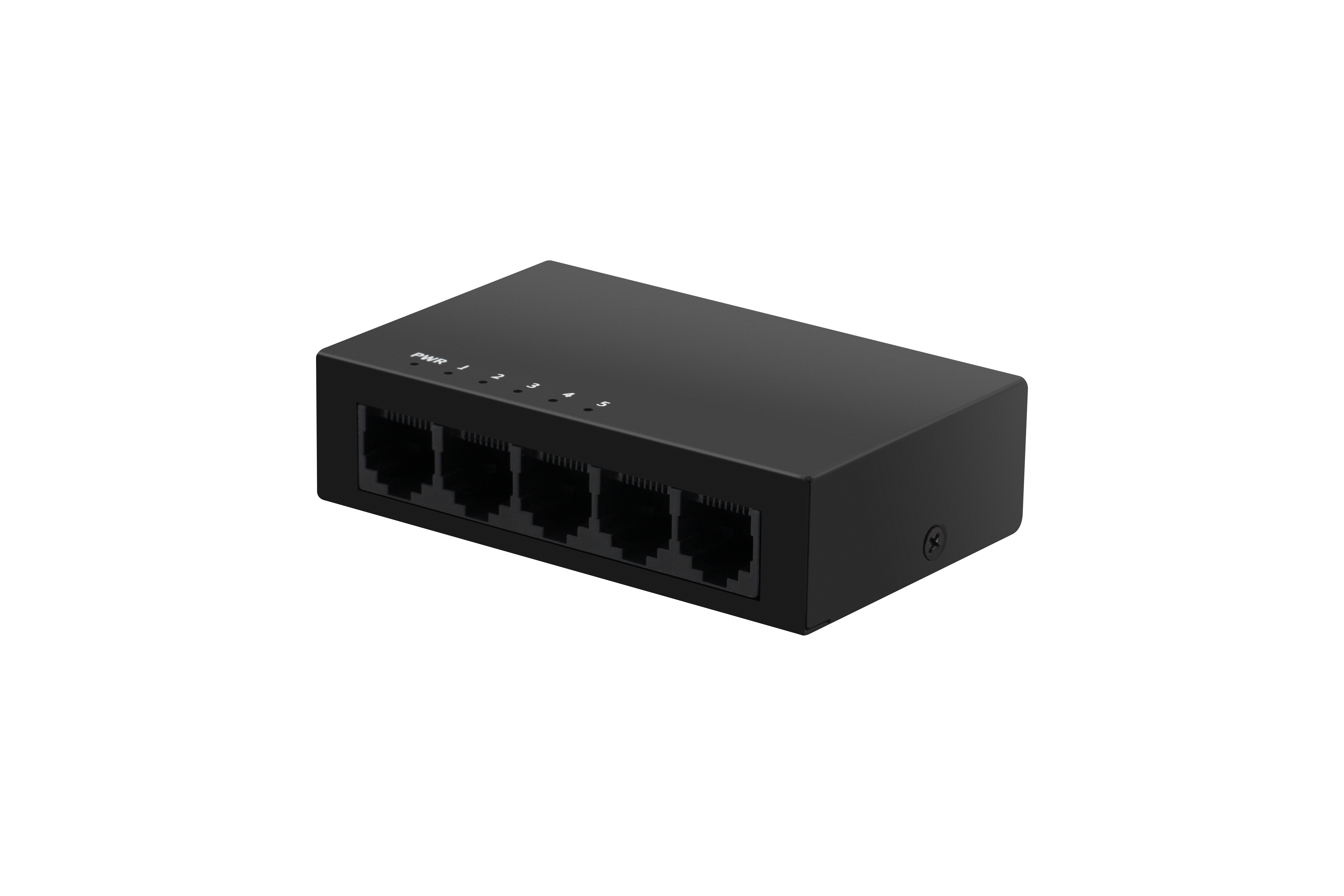

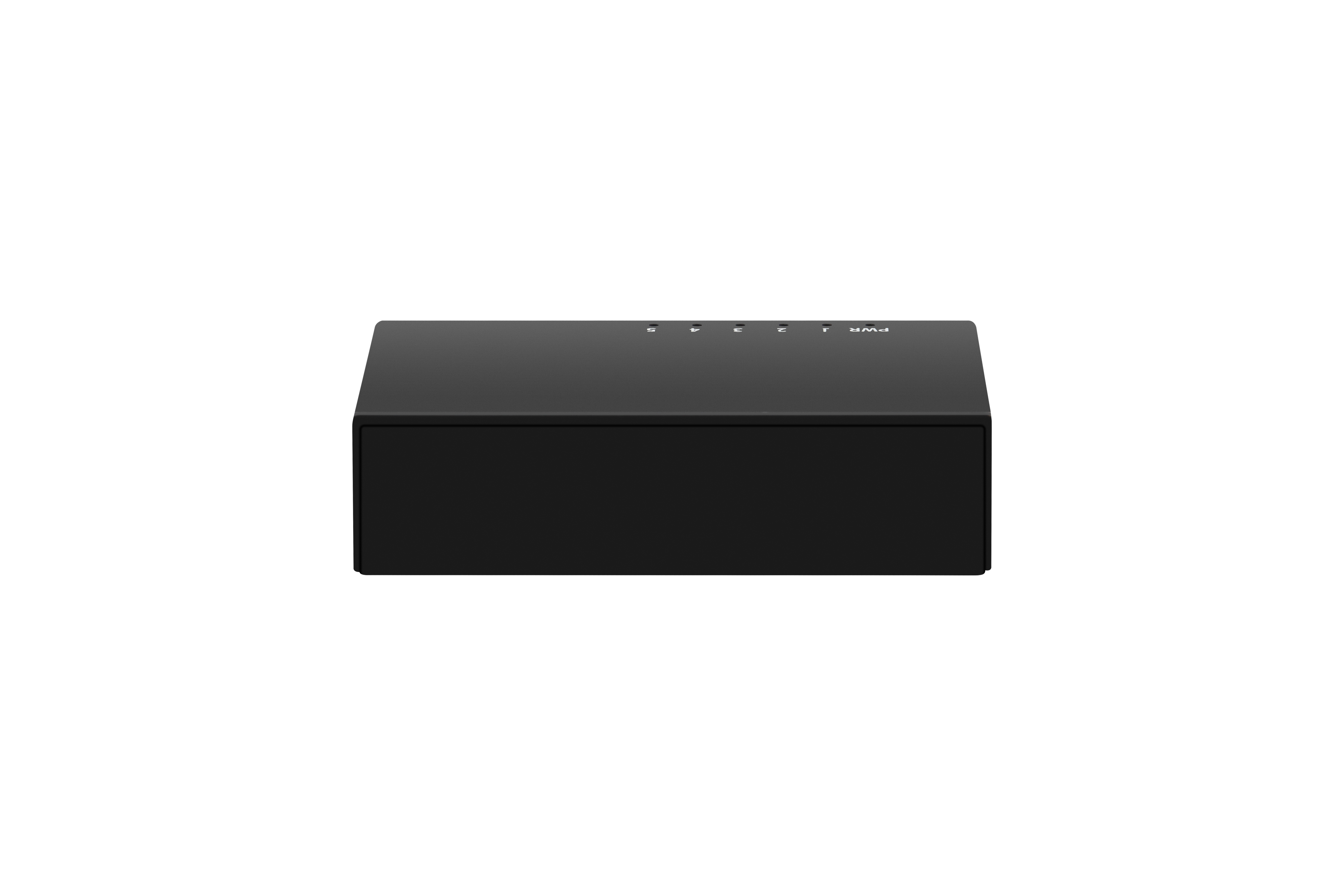

5 Port Gigabit Unmanaged Network Switch
Introduction
STC-05GE adopts high-quality and high-speed network intelligent chip and completely solves the noise problem of small switches in the office environment through the fan-less mute design.
This switch has 5 Gigabit RJ45 ports enjoying
- seamless connection for 10/100/1000M Ethernet
- easy to manage and maintain
STC-05GE can be widely used in security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.
Key Features
- 5*10/100/1000MRJ45Ports
- ApplyIEEE802.3,IEEE802.3u,IEEE802.3ABstandard
- Ethernetportsupports10/100/1000Madaptive
- Support auto MDI/ MDIX
- Panel indicators to monitor working status and help fault analysis
- Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard
Specification
|
Product Name |
5 port 10/100/1000Mbps Ethernet Switch |
|
Port |
5x10/100/1000M UTP RJ45(Support MDI/MDIX, auto-sensing) |
|
Switching Capacity |
10Gbps |
|
Throughput |
7.44Mpps |
|
PacketBuffer |
3M |
|
MAC Address |
2K |
|
Jumbo Frame |
15Kbytes |
|
VLAN |
4K |
|
Transfer Mode |
Store and forward |
|
MTBF |
100000 hours |
|
Network protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
|
Industry Standard |
EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-5(Surge) |
|
Network Medium |
10Base-T: Cat3,4,5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m) |
|
SecurityCertificate |
CE/FCC/RoHS |
|
WorkingEnvironment |
Working Temperature: -10~50℃ Storage Temperature: -40~70℃ Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
|
Power |
Switch Input Voltage: DC5V1A |
|
Power Consumption |
<5W |
|
LEDIndicators |
PWR(Power indicator) On: power on Link(Network Link) On: 10/100/1000M link connection is normal Blinking: Data transmission is normal Off: link failure |
Dimension
Packing List
- 1pc switch
- 1pc power adapter
- 1pc user manual
Shipping box information (Belowinformation is approximately accurate)
Product size: 87*54*23mm
Inner box size: 90*88*58mm
Product weight: 0.13Kg
Packing weight: 0.20Kg
Master box size: 470*320*380mm
Packing quantity: 100Pcs
Packing weight: 21Kg
